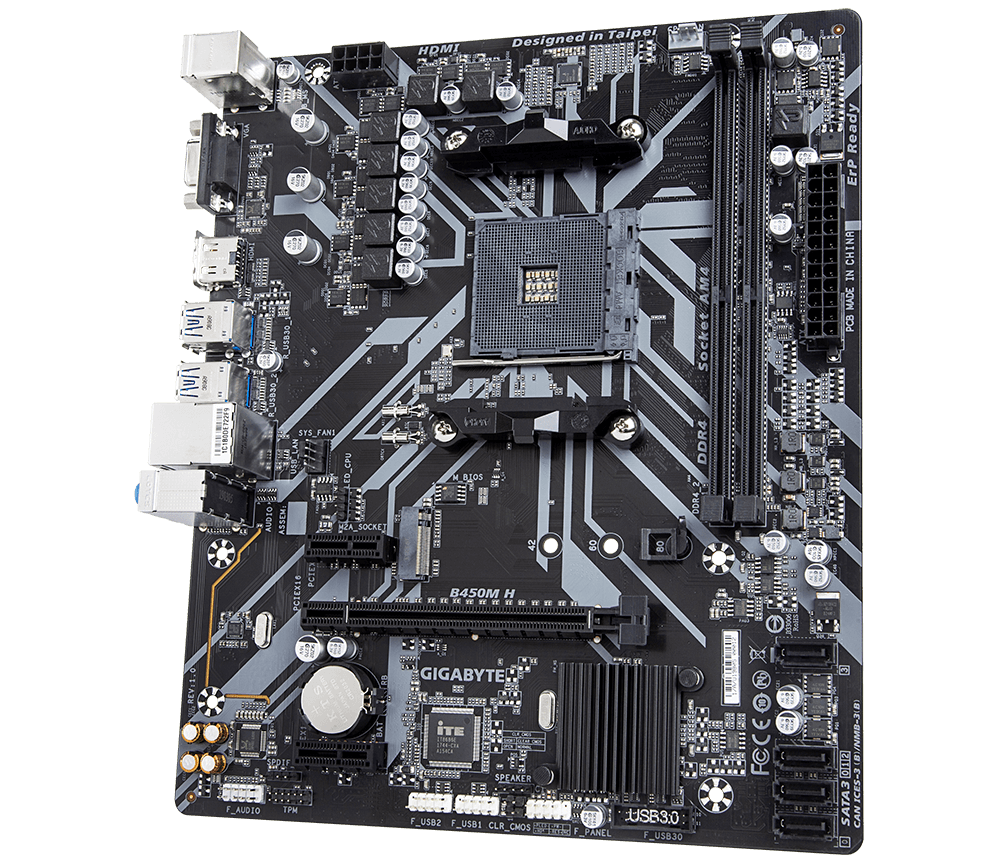

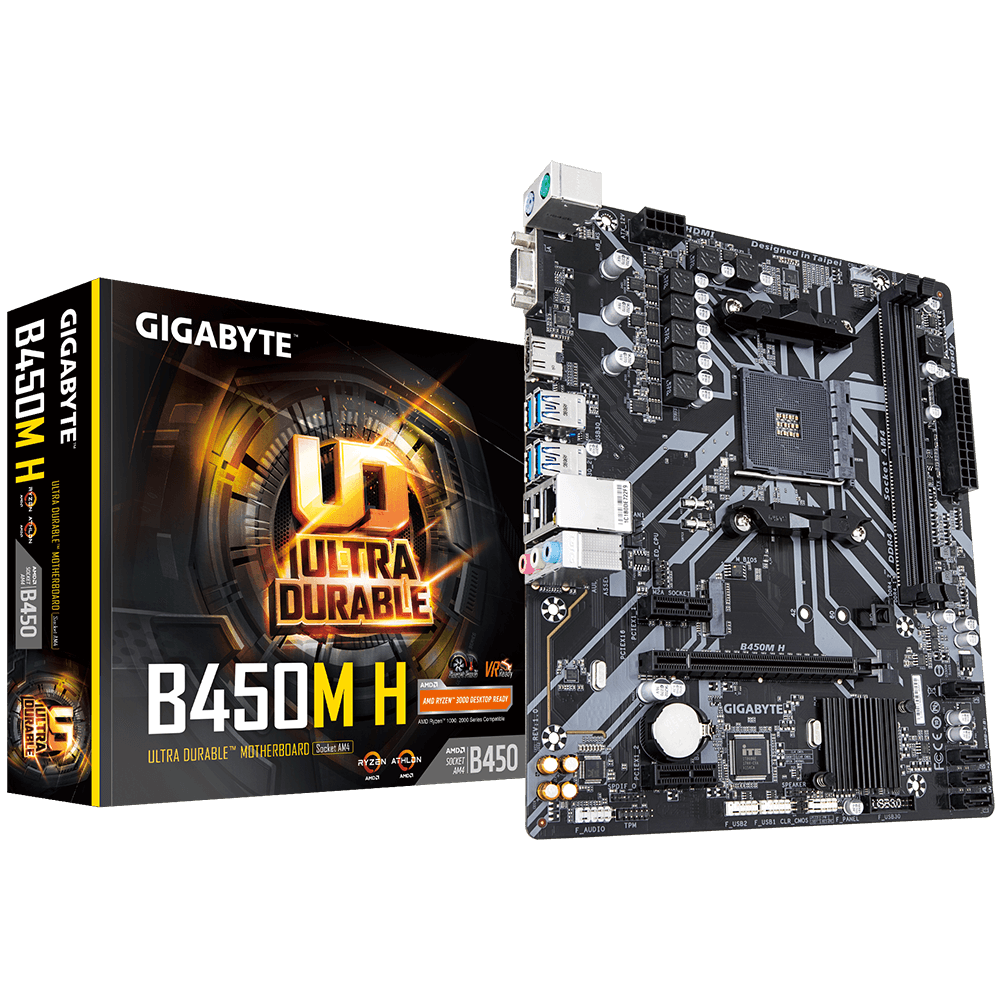

GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard

Name: GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard
SKU: 6472
Price: 6100.00 BDT
Availability: InStock

Add to wishlist

Compare

Short Description:

Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
HDMI, D-sub Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB Fusion supports RGB LED Strips in 7-Colors
High Quality Audio Capacitors and Audio Noise Guard Design
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
APP Center Including EasyTune™ and Cloud Station™ Utilities

6,100.00৳ ~~6,704.00৳~~

AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design

Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
HDMI, D-sub Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB Fusion supports RGB LED Strips in 7-Colors
High Quality Audio Capacitors and Audio Noise Guard Design
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
APP Center Including EasyTune™ and Cloud Station™ Utilities

SPEC OVERVIEW

CONNECTIVITY

COOLING

PERFORMANCE

LIGHTING

AUDIO

ULTRA DURABLE

GIGABYTE EXCELLENCE

D-sub

HDMI

USB 3.1 Gen1 Type-A

GIGABYTE Gaming LAN with Bandwidth Management

RGB LED Header

Audio Noise Guard

8-Channel HD Audio

High-End Audio Capacitors

4+3phase Hybrid Digital PWM

Dual Channel DDR4, 2 DIMMs

Supports AMD Ryzen™ Series Processors

M.2 Connector for SSD

All Solid Capacitors

SATA3

GET READY FOR AMD RYZEN™ 5000 SERIES

GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.

AMD Ryzen™ 5000, 4000, 3000, 2000, 1000 Series Compatible

AMD StoreMI technology

GIGABYTE 400-series motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi

CONNECTIVITY

Fast Onboard Storage with NVMe
PCIe Gen3 x4 80mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.

* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

Real-Time Network Monitoring

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Temperature Sensors

Fan Pin Headers

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors

Hybrid Fan Headers

■ 5 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

FAN STOP

Hybrid FAN Header

Smart Fan 5 Software

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design

PERFORMANCE

Immersive VR
Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*

■ Graphics Card: NVIDIA GTX 1050 / AMD R9 290 or greater, Compatible HDMI 1.4 video output
■ CPU: AMD Ryzen™ 7 series processor
■ Motherboard: GIGABYTE AMD X470 / B450 motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer

*Please check VR vendor website for full system requirements.

Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.

LIGHTING

Supports RGB Light Strips in 7 Colors

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

* LED strips not included.
* Lighting effects may vary by model.

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

The Industry’s Leading Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

GIGABYTE EXCELLENCE

GIGABYTE BIOS & Applications

BIOS

APP CENTER

EasyTune

@BIOS

System Information Viewer

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today’s standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon^® Graphics via HDMI.

HDMI™ – The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Category: MAIN BOARD Tags: best gigabyte motherboard price in bd, GIGABYTE B450M H price in bd, GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard price in bd

Brand	Gigabyte

CPU
1. AMD Socket AM4, support for: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
(Please refer “CPU Support List” for more information.)
Chipset
1. AMD B450
Memory
1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz^(Note)
  * Support for HDMI 2.0 version and HDCP 2.2.^(Note)
Maximum shared memory of 16 GB
(Note) Actual support may vary by CPU.
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
  (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
  * Actual support may vary by CPU.
  * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
USB
Chipset:
1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
14. 1 x speaker header
15. 1 x Clear CMOS jumper
16. 1 x chassis intrusion header
Back Panel Connectors
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 4 x USB 3.1 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart Survey
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
2. Support for Windows 7 64-bit
  * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
  * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor
1. Micro ATX Form Factor; 24.4cm x 20.5cm
